Bill Abbott - Electrical DC System Specialist
Not sure exactly what you want from your electrical system or how much of the work you want to do yourself?
Feel free to come and check out Bill’s off-grid Transit Camper Conversion - you can get a hands-on look at how the electrical system is setup and wired throughout the van before deciding on your own.

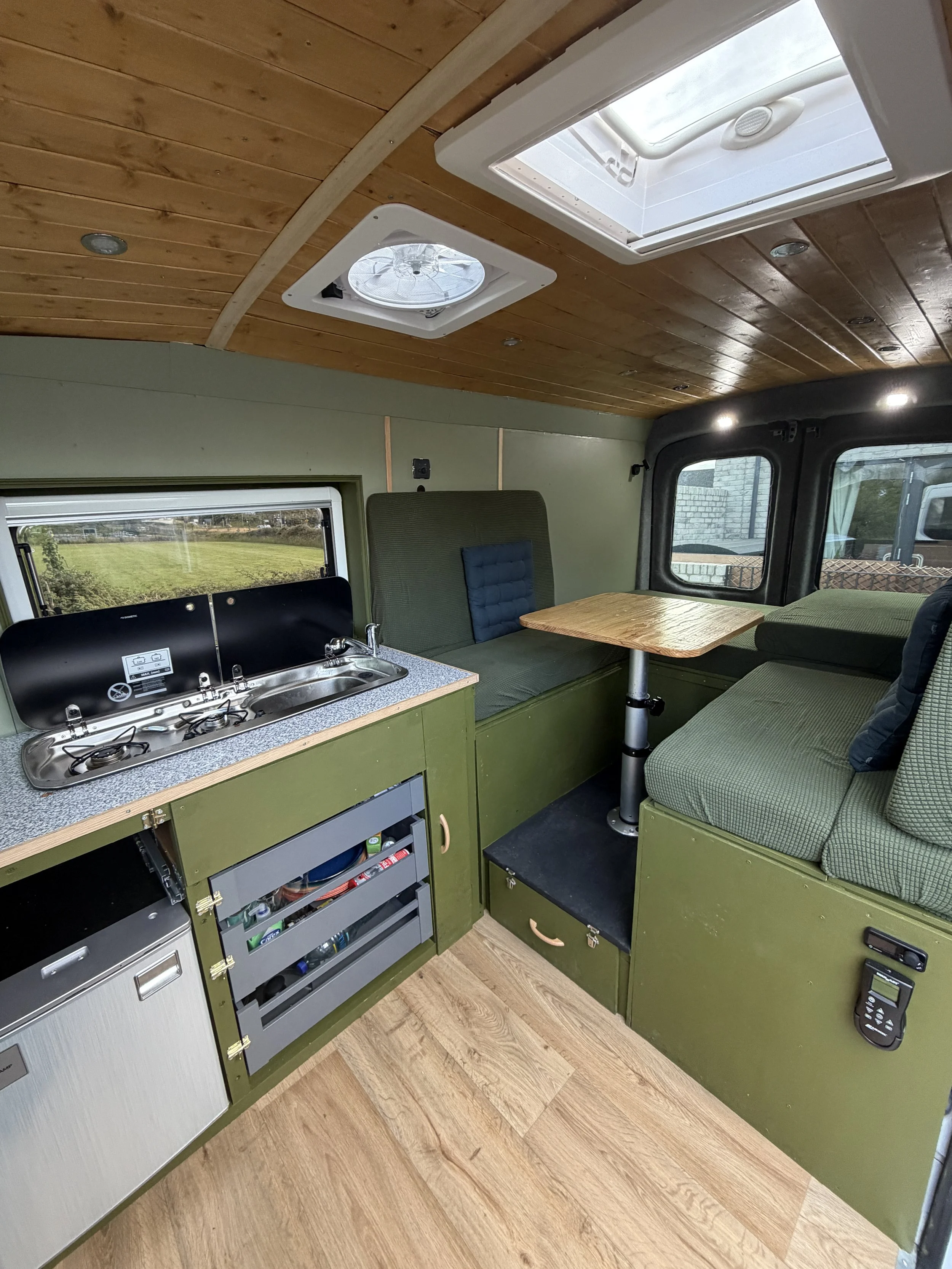

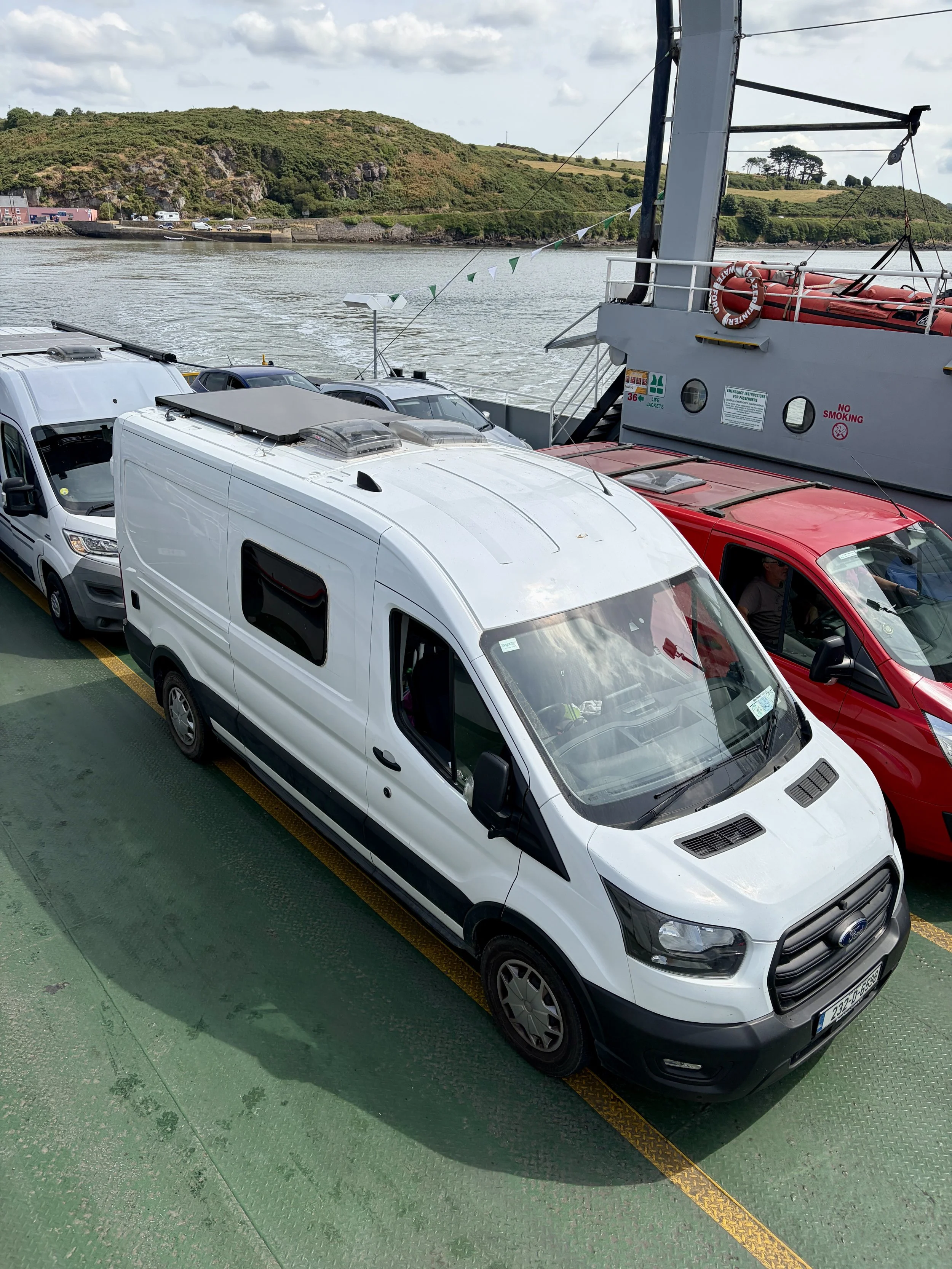

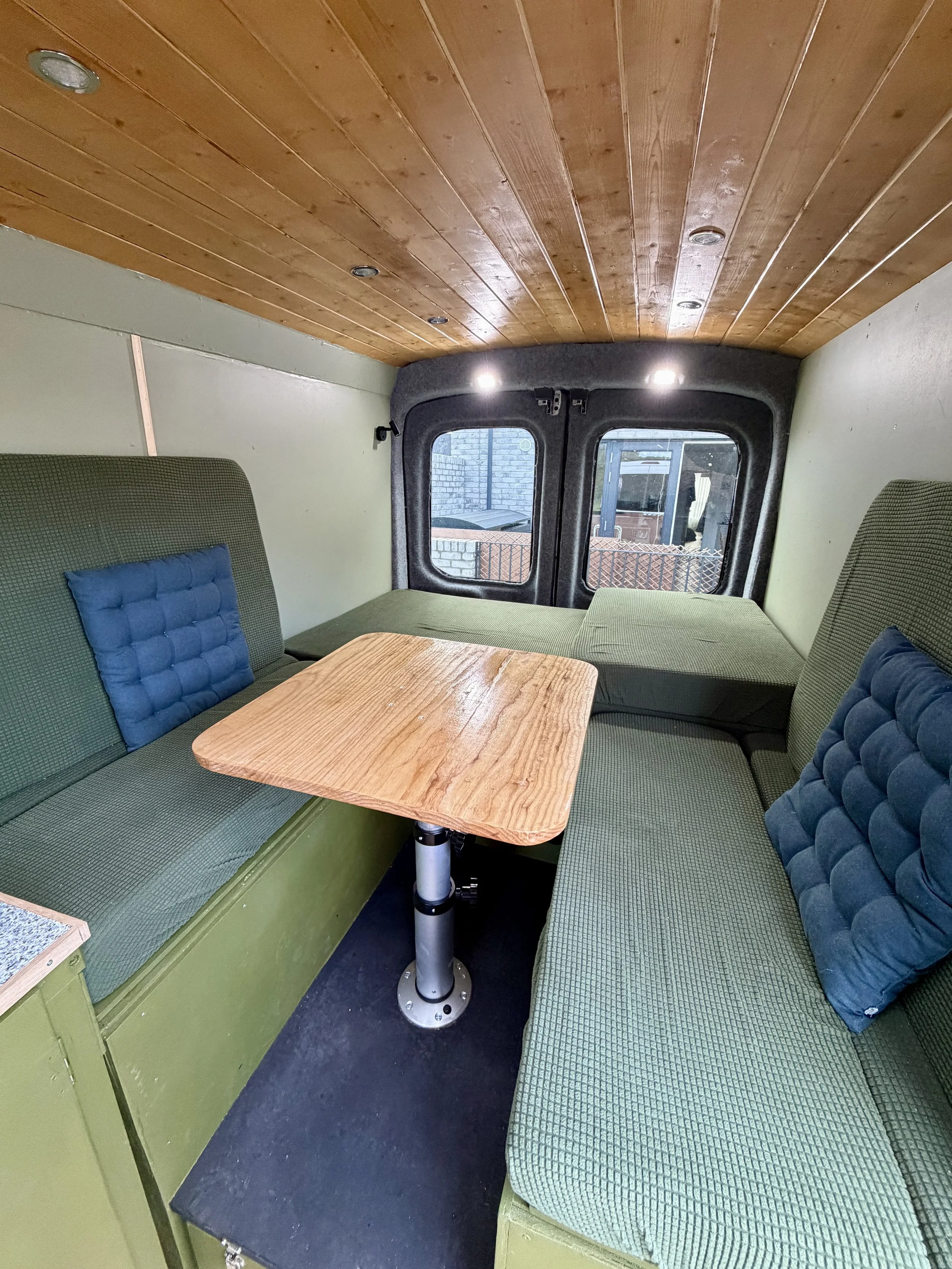

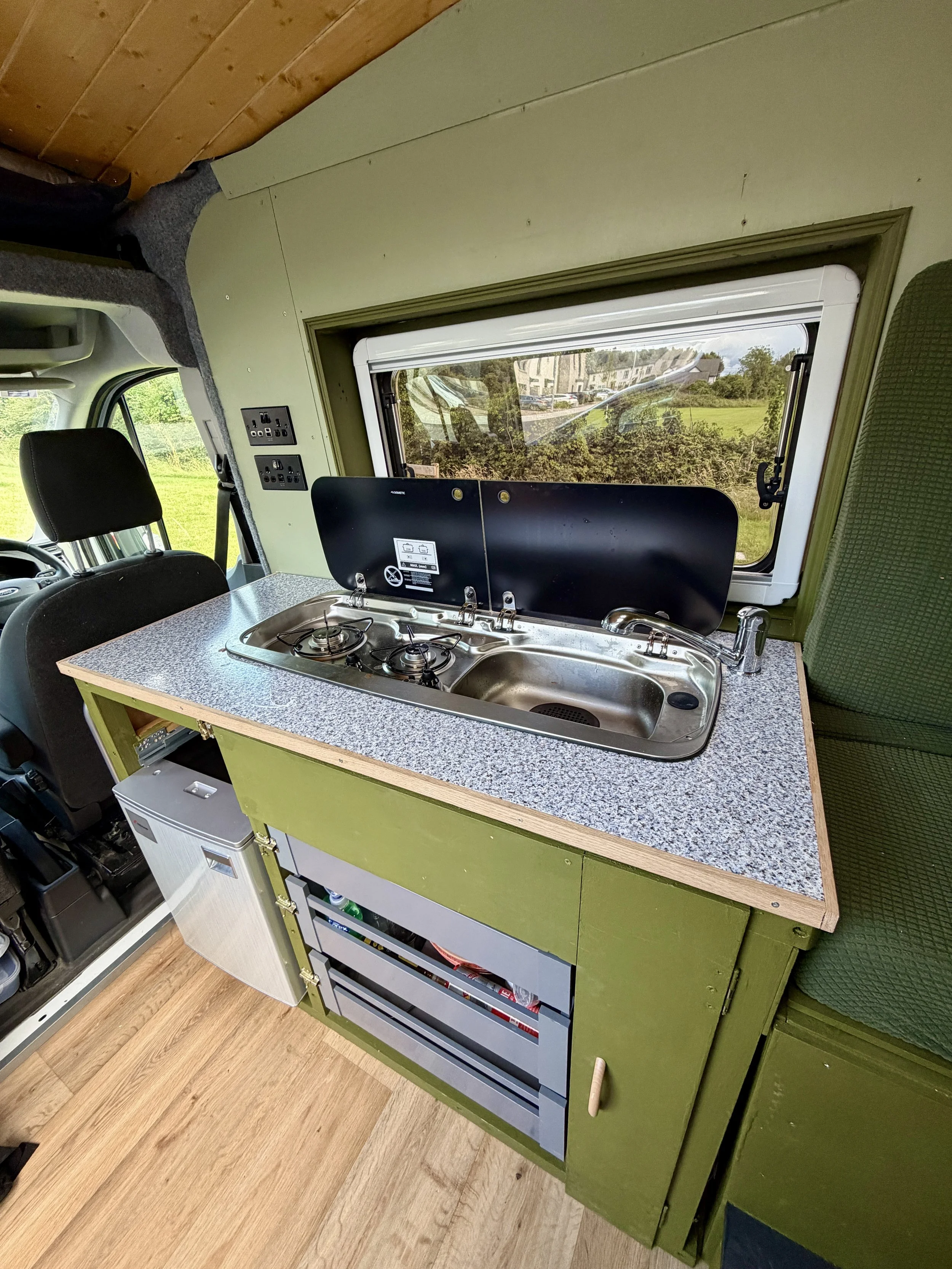

Off-grid Transit Camper Conversion
This system was designed to work without any campsites or shore power during the warmer 6 months of the year.
It can run normal daily power loads for 5 days without any sunshine or driving time. In reality, with modest cloudy sunshine and driving 30 minutes per day on average - it can stay charged off-grid indefinitely.

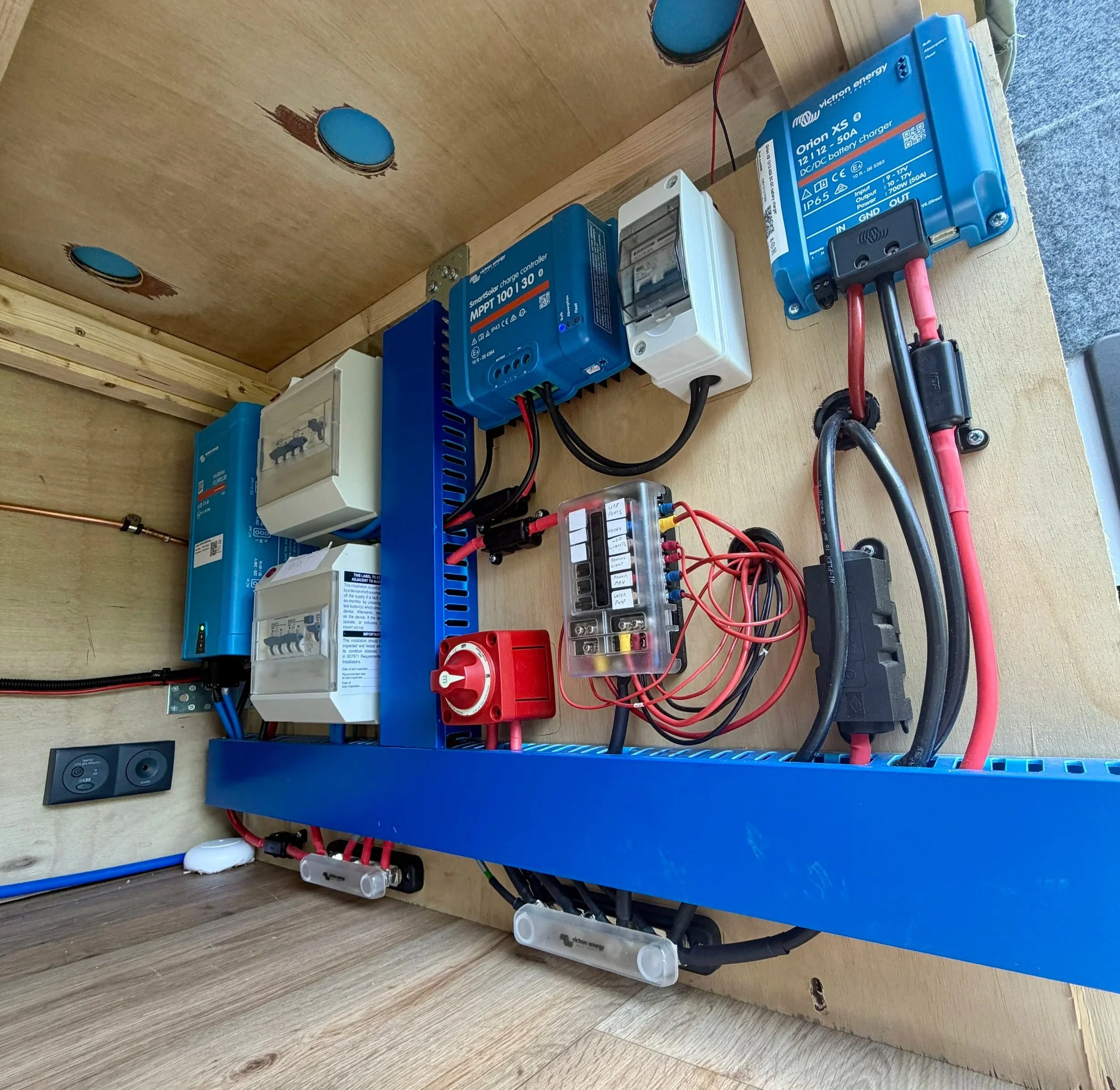

Specifications:
230 Amp Hour Fogstar Drift Lithium Battery
400 Watt Rigid Solar Panel mounted on the roof.
Victron 50 Amp B2B Battery Charger ( charges the leisure battery from the alternator while driving ).
Victron MPPT Charge Controller - This sits between the solar panels and the leisure battery.
Victron Multiplus 500 Inverter / Charger - A 2 in 1 unit that allows for shore power charging in campsites and converts the 12V DC battery power to 230V AC power for household 3-pin sockets.
Loads:
This system powers a Fridge, Roof Fan, 8 LED Spotlights, 4× 3-pin Sockets, 4x USB Charging Sockets, a Reading Light, Diesel Heater and Starlink Wifi.
